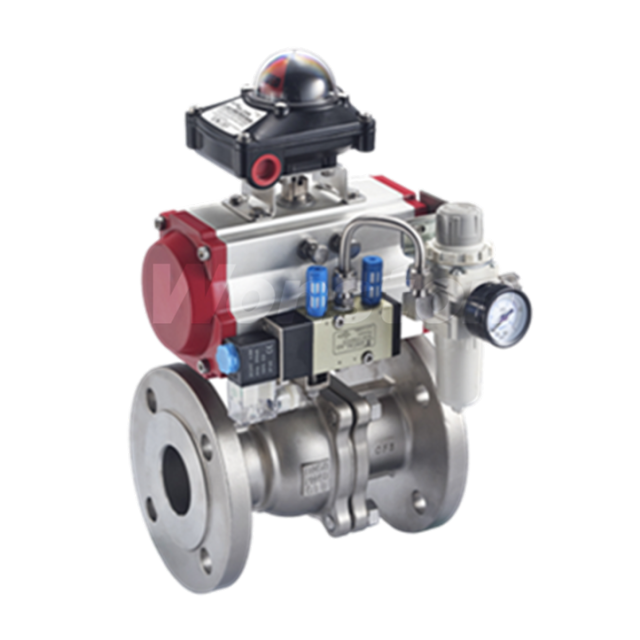

Full Port
ISO5211 Dire Mounting Pad
Blowout-Proof Stem Design
Anti-Static Device
Operation:Pneumatic Actuator
Investment Casting
Working Temperature:-20℃~150℃
Suitable Medium:Water,Oil,Gas
Full Port
ISO5211 Dire Mounting Pad
Blowout-Proof Stem Design
Anti-Static Device
Operation:Pneumatic Actuator
Investment Casting
Working Temperature:-20℃~150℃
Suitable Medium:Water,Oil,Gas
|
No |
PART NAME |
MATERIAL |
||
|
01 |
CAP |
CF8M |
CF8 |
WCB |
|
02 |
BODY |
CF8M |
CF8 |
WCB |
|
03 |
JOINT GASKET |
PTFE |
PTFE |
PTFE |
|
04 |
BOIT |
SS304 |
SS304 |
SS304 |
|
05 |
NUT |
SS304 |
SS304 |
SS304 |
|
06 |
SEAT |
PTFE |
PTFE |
PTFE |
|
07 |
ANTI-STATIC DEVICE |
SS316 |
SS304 |
SS304 |
|
08 |
BALL |
SS316 |
SS304 |
SS304 |
|
09 |
STEM |
SS316 |
SS304 |
SS304 |
|
10 |
THRUST WASHER |
PTFE |
PTFE |
PTFE |
|
11 |
O-RING |
FKM |
FKM |
FKM |
|
12 |
BOLT |
SS304 |
SS304 |
SS304 |
|
13 |
NUT |
SS304 |
SS304 |
SS304 |
|
14 |
STEM PACKING |
PTFE |
PTFE |
PTFE |
|
15 |
PACKING FOLLOWER |
SS304 |
SS304 |
SS304 |
|
16 |
BUTTERFLY SPRING |
SS304 |
SS304 |
SS304 |
|
17 |
GLAND |
CF8 |
CF8 |
CF8 |
|
18 |
ACTUATOR |
|
|
|
|
19 |
SOLENOID VALVES |
|
|
|
|
20 |
LIMIT SWITCH |
|
|
|
Design Standard:ASME B16.34,GB/T12224
End Flange:ASME B16.5,DIN2633,JIS B2220,HG20592
Face to Face:ASME B16.5,BS EN588-1,JIS B2002,GB/T12221
Inspection and testing:API598,GB/T26480GB/T13927
Design Standard:ASME B16.34
Threaded Ends:ANSI B.20.1(NPT):BS21;DIN2999/259;IS0228/1;JISB03;IS07/1
Inspection and testing:API598/MSS SP-110/EN 12266
Design Standard:ASME B16.34
Face to face:DIN3202-M3
Threaded Ends:ANSI B.20.1(NPT):BS21;DIN2999/259;IS0228/1;JIS B03;IS07/1
Socket welded:ANSIB16,11
Inspection and testing:API598/MSS SP-110/EN 12266
