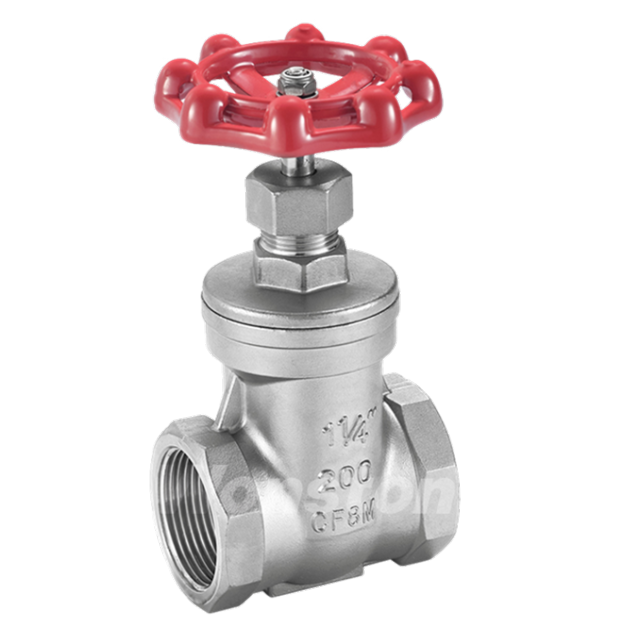

Working Pressure:1/2”~3”200WOG
Full Port
SS Integrated Seat
Operation:Hand Wheel
Various Thread Standards Available
Investment Casting
Working Temperature:-20℃~245℃
Suitable Medium:Water,Oil,Gas
Working Pressure:1/2”~3”200WOG
Full Port
SS Integrated Seat
Operation:Hand Wheel
Various Thread Standards Available
Investment Casting
Working Temperature:-20℃~245℃
Suitable Medium:Water,Oil,Gas
|
No． |
PART NAME |
MATERIAL |
|
|
01 |
BODY |
CF8M |
CF8 |
|
02 |
WEDGE |
CF8M |
CF8 |
|
03 |
STEM |
SS316 |
SS304 |
|
04 |
CAP |
CF8M |
CF8 |
|
05 |
JOINT GASKET |
PTFE |
PTFE |
|
06 |
SNAPRING |
SS304 |
SS304 |
|
07 |
THRUST WASHER |
SS304 |
SS304 |
|
08 |
PACKING |
PTFE |
PTFE |
|
09 |
GLAND BUSH |
304 |
SS304 |
|
10 |
CAP NUT |
CF8M |
CF8 |
|
11 |
HAND WHEEL |
QT400-18 |
QT400-18 |
|
12 |
Spring washer |
SS304 |
SS304 |
|
13 |
NUT |
SS304 |
SS304 |
Design Standard:ASME B16.34
Threaded Ends:ANSI B.20.1(NPT):BS21;DIN2999/259;IS0228/1;JISB03;IS07/1
Socket welded:ANSIB16,11
Inspection and testing:API598/MSS SP-110/EN 12266
Design Standard:ASME B16.34
Threaded Ends:ANSI B.20.1(NPT):BS21;DIN2999/259;IS0228/1;JISB03;IS07/1
Inspection and testing:API598/MSS SP-110/EN 12266
Design Standard:ASME B16.34
Threaded Ends:ANSI B.20.1(NPT):BS21;DIN2999/259;IS0228/1;JISB03;IS07/1
Inspection and testing:API598/MSS SP-110/EN 12266
