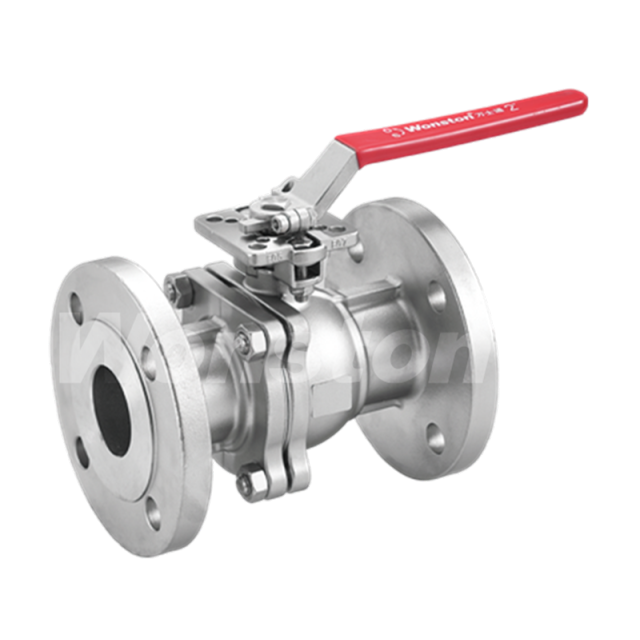

Working Pressure:1/2”~6” 300LB
Full Port
ISO5211 Direct Mounting Pad
Blowout-Proof Stem Design
Anti-Static Device
Locking Device
Operation:Manual Or Actuator
Investment Casting
Working Temperature:-20℃~150℃
Suitable Medium:Water,Oil,Gas
Working Pressure:1/2”~6” 300LB
Full Port
ISO5211 Direct Mounting Pad
Blowout-Proof Stem Design
Anti-Static Device
Locking Device
Operation:Manual Or Actuator
Investment Casting
Working Temperature:-20℃~150℃
Suitable Medium:Water,Oil,Gas
|
No. |
PART NAME |
MATERIAL |
||
|
01 |
BOLT |
A193-B8 |
A193-B8 |
A193-B8 |
|
02 |
NUT |
A194-8 |
A194-8 |
A194-8 |
|
03 |
CAP |
CF8M |
CF8 |
WCB |
|
04 |
SEAT |
PTFE |
PTFE |
PTFE |
|
05 |
BALL |
SS316 |
SS304 |
SS304 |
|
06 |
ANTI-STATIC DEVICE |
SS316 |
SS304 |
SS304 |
|
07 |
JOINT GASKET |
PTFE |
PTFE |
PTFE |
|
08 |
BODY |
CF8M |
CF8 |
WCB |
|
09 |
THRUST WASHER |
PTFE |
PTFE |
PTFE |
|
10 |
O-RING |
Viton |
Viton |
Viton |
|
11 |
STEM PACKING |
PTFE |
PTFE |
PTFE |
|
12 |
STEM |
SS316 |
SS304 |
SS304 |
|
13 |
COMPRESSION RING |
SS304 |
SS304 |
SS304 |
|
14 |
GLAND |
CF8 |
CF8 |
CF8 |
|
15 |
LOCATING PIECE |
SS304 |
SS304 |
SS304 |
|
16 |
BOLT |
SS304 |
SS304 |
SS304 |
|
17 |
NUT |
SS304 |
SS304 |
SS304 |
|
18 |
BUTTERFLY SPRING |
SS304 |
SS304 |
SS304 |
|
19 |
WASHER |
SS304 |
SS304 |
SS304 |
|
20 |
BOLT |
SS304 |
SS304 |
SS304 |
|
21 |
NUT |
SS304 |
SS304 |
SS304 |
|
22 |
HANDLE |
CF8 |
CF8 |
CF8 |
Design Standard:ASMEB16.34
End Flange:ASME B16.5
Face to Face:ASME B16.10
Inspection and testing:API598
Design Standard:ASMEB16.34
End Flange:ASME B16.5
Face to Face:ASME B16.10
Inspection and testing:API598
Design Standard:ASMEB16.34
End Flange:ASME B16.5
Face to Face:ASME B16.10
Inspection and testing:API598
